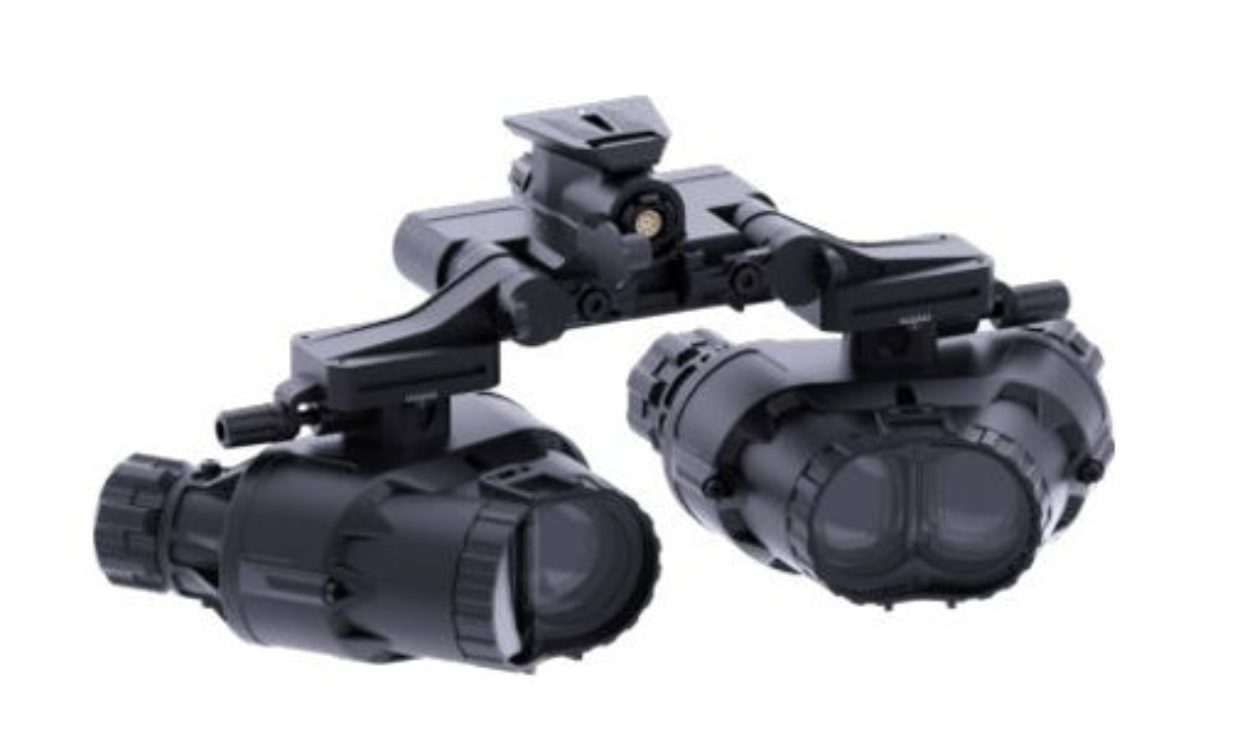

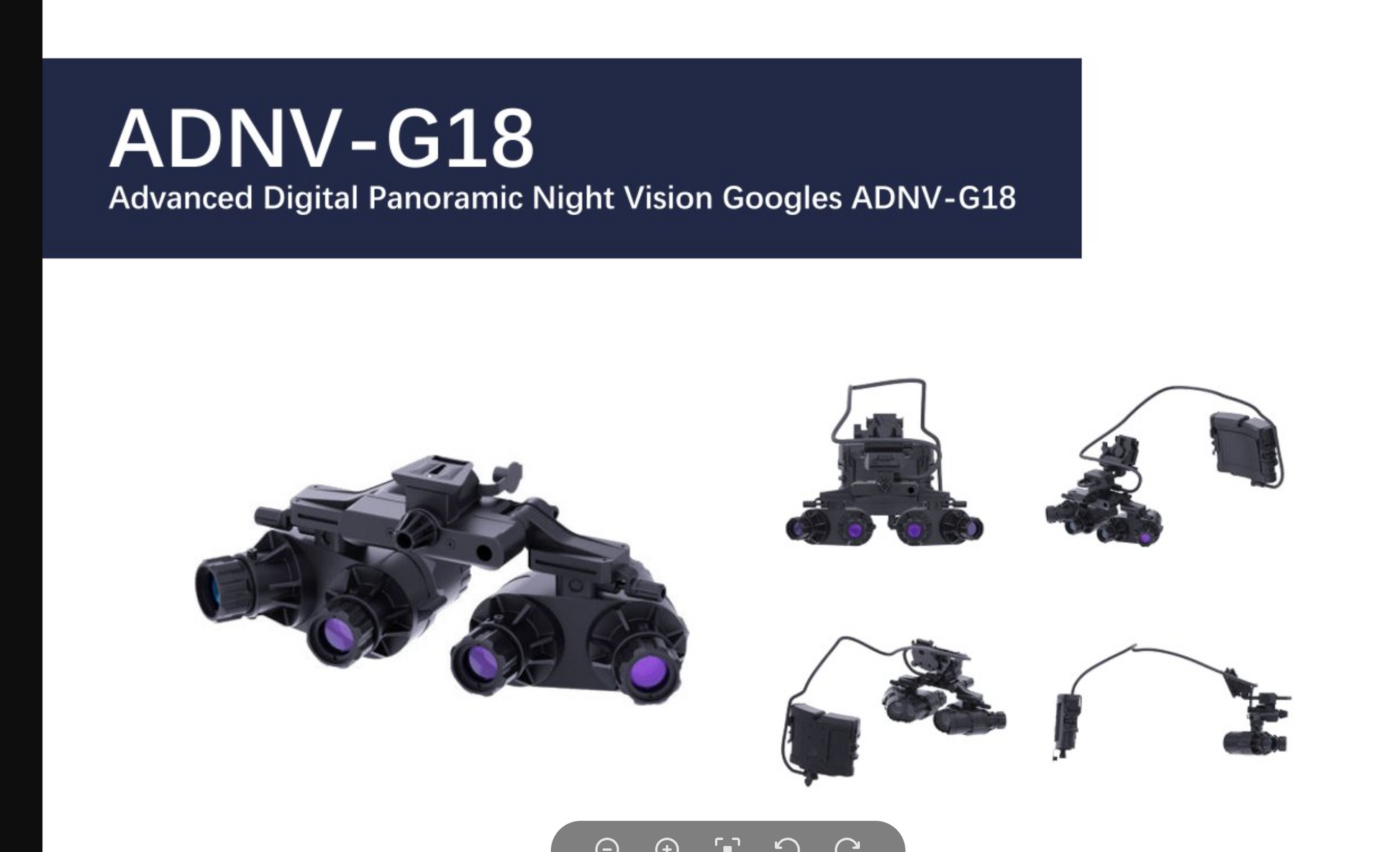

ADNV-G18 Quad Panoramic view Night Vision Goggle

USE coupon code G18 to get special discount

The G18 got 4 x 1inch CMOS gen2 sensors (same sensor as P2)

120 degrees field of view (wider than analog tubes)

Compatible with standard wilcox mount

come with battery pack (4 x 18650 battery)

NOTE: Currently G18 is backorderd, lead time is 15-20 days

Main Technical Parameters

Device Parameters

• Image sensor dimension: 1 inch
• Spectral response range: 400nm ~ 1100nm
• Image resolution: 800 × 600
• Pixel size: 18μm
• Minimum illumination (No light compensation): 0.00005 lx
• OLED resolution: 800 × 600
• Frame rate: 50Hz / 100Hz (customizable)

Optical Parameters

• Objective lens focal length: 19.8mm
• F/#: F1.2
• FOV: 120° (Horizontal)
• Exit pupil: 8mm
• Eye relief: 21mm
• Magnification: 1×
• Minimum objective focus: 250mm
• Diopter: External diopter piece

Parameters of the Entire Machine

• Boot time: < 4s
• Battery: Four 18650 rechargeable lithium batteries
• Operation time: > 22 hours
• Size: 219 × 105 × 89 mm
• Mechanical interface: Standard Wilcox interface
• Extensible electrical interface: Type-C
• Degree of protection: IP67

Weight

• Goggle only: < 640g
• System weight (including four batteries and cables): < 1200g
  (Materials: Magnesium-aluminium alloy, Aluminium alloy, Composite resin)

Environmental Adaptability

• Operating temperature: -20°C ~ 55°C (expandable to -40°C ~ 60°C)
• Storage temperature: -25°C ~ 55°C (expandable to -45°C ~ 70°C)

DRI Performance

• Human:
  • Detection: 935m
  • Recognition: 468m
  • Identification: 234m
• Vehicle:
  • Detection: 1265m
  • Recognition: 633m
  • Identification: 316m
