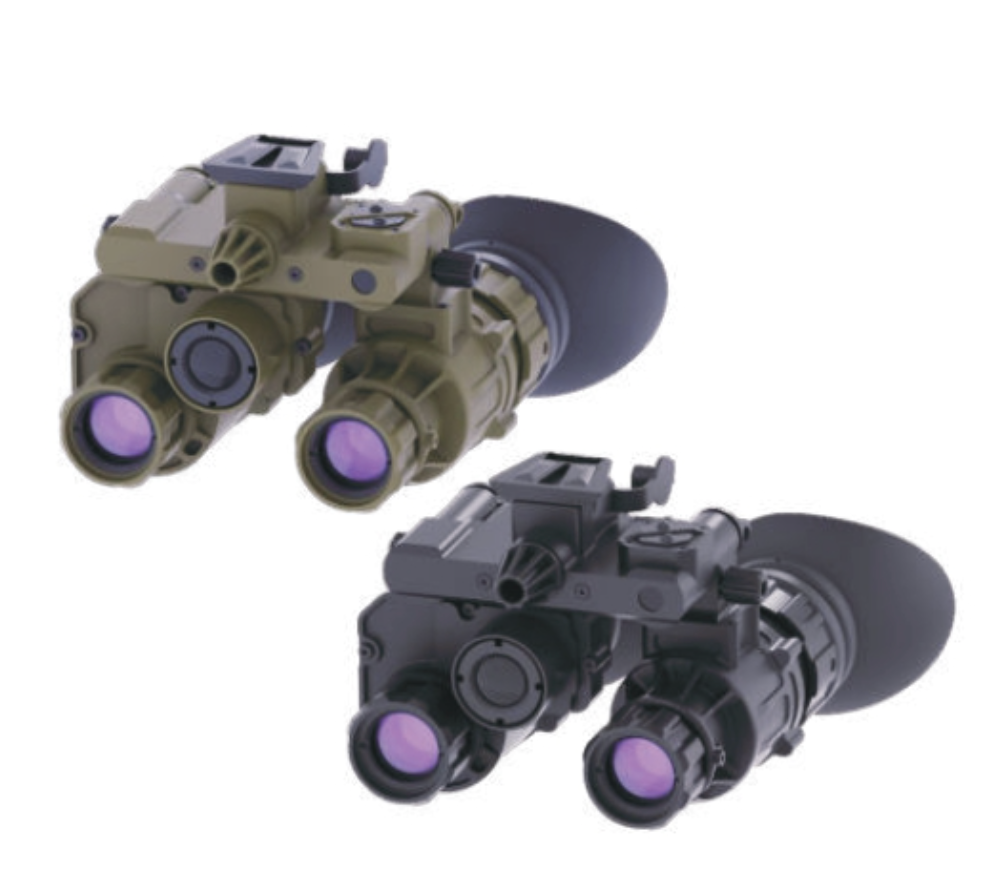

Advanced Fusion Sight Digital Night Vision Goggle-Binocular ADNV GF31

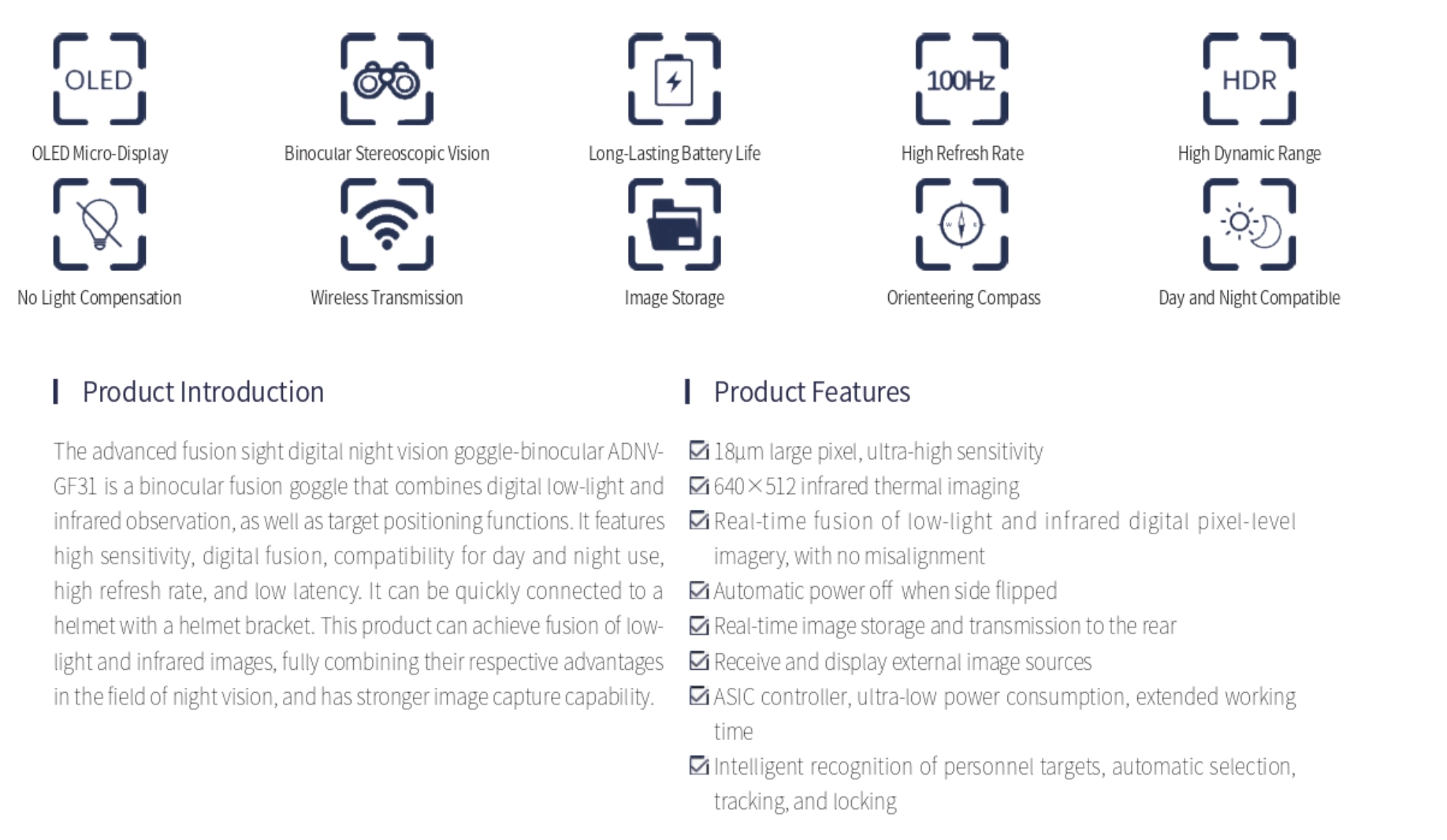

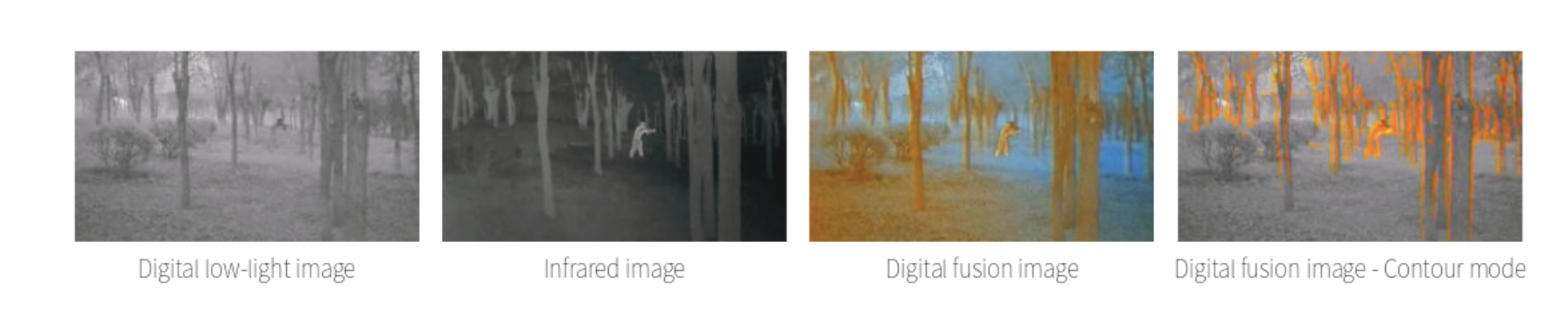

PRODUCT INTRODUCTION: The advanced fusion sight digital night vision goggle-binocular ADNVGF31 is a binocular fusion goggle that combines digital low-light and  infrared observation

APPLICATIONS: 1.Outdoor night vision 2.Police enforcement 3.Safety rescue 4.Forest monitoring 5.Camping adventure

Main Technical Parameters

Device Parameters

Parameter	Low Light	Infrared
Image sensor dimension	1 inch	-
Spectral response range	400nm ~ 1100nm	8μm ~ 14μm
Image resolution	800 × 600	640 × 512
Pixel size	18μm	12μm
Minimum illumination (No light compensation)	0.00005 Lx	-
OLED resolution	800 × 600	-
Frame rate	50Hz / 100Hz	-

Optical Parameters

Parameter	Value
Objective lens focal length	19.8mm (Low light) / 10.6mm (Infrared)
F/#	F1.05 (Low light) / F1.0 (Infrared)
FOV	50° (> 40° × 30°)
Exit pupil	8mm
Exit relief	23mm
Magnification	1×
Min. Objective focus	250mm
Diopter	-4D ~ +4D

The Parameters of the Entire Machine

Parameter	Value
Boot time	< 4s
Battery	Four 18650 rechargeable lithium batteries
Max. Operation time	> 32 hours
Size (mm)	107 × 105 × 89
Mechanical interface	Standard Wilcox interface
Extensible electrical interface (Battery compartment)	Type-C
Degree of protection	IP67
Weight (Goggle only)	< 535g (Magnesium-aluminium alloy)
System weight (Including battery and holder)	< 1080g (Magnesium-aluminium alloy, composite resin)

Environmental Adaptability

Parameter	Value
Operating Temperature	-20°C ~ 55°C (Expandable to -40°C ~ 60°C)
Storage Temperature	-25°C ~ 55°C (Expandable to -45°C ~ 70°C)

Detection, Recognition, and Identification (DRI)

Target	Detection	Recognition	Identification
Human (Low Light)	935m	468m	234m
Human (Infrared)	751m	375m	188m
Vehicle (Low Light)	1265m	633m	316m
Vehicle (Infrared)	1016m	508m	254m
